2770561 | Phoenix Contact
Through terminal block, screw connection, 0.2-4.0 mm², 20 A, 6 kV, gray, 2770561
Unit Price (€ / pc.)
7.7588 € *
Available in 10 days: 26 pcs. - if ordered today
Total Price:
7.76 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7588 €
10 pcs.
7.1400 €
50 pcs.
6.4974 €
100 pcs.
5.8429 €
*incl. VAT plus shipping costs
Subject to prior sale

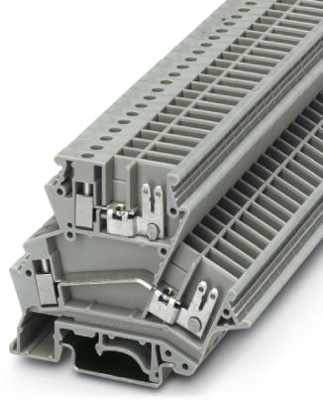

Feed-through terminal block, 2770561, Phoenix Contact
Feed-through terminal block, rated voltage: 400 V, nominal current: 20 A, 1st and 2nd level connection left, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 4 mm², connection method: Spade connection, mounting: NS 35/7,5, NS 35/15, NS 32, color: gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 59 mm | |
| Version | through terminal block | |
| Colour | gray | |
| Width | 6.2 mm | |
| Rated current | 20 A | |
| Degree of soiling | 3 | |
| Rated Voltage | 400 V | |
| AWG cross-section | AWG 24 to 12 | |
| Connection | screw connection | |
| Rated surge voltage | 6 kV | |
| Cable cross-section | 0.2-4.0 mm² | |
| Length | 72 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
