2716305 | Phoenix Contact
Device terminal, screw connection, 0.2-4.0 mm², 2 pole, 32 A, 6 kV, orange, 2716305
Unit Price (€ / pc.)
4.7719 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
4.77 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7719 €
10 pcs.
4.3911 €
50 pcs.
3.9984 €
100 pcs.
3.6057 €
*incl. VAT plus shipping costs
Subject to prior sale

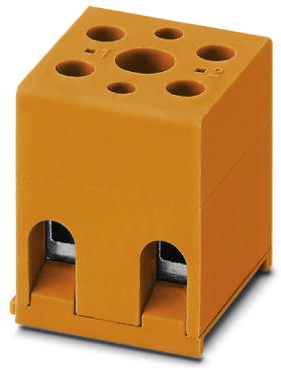

Device terminal block, 2716305, Phoenix Contact
Device terminal block, for direct mounting, 2-pos., bridged, color: orange.
Features
- Touch-proof schock protection

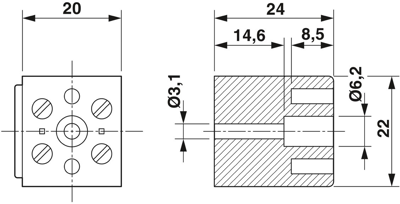

Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24 to 12 | |
| Length | 22 mm | |
| Version | device terminal | |
| Rated current | 32 A | |
| Colour | orange | |
| Connection | screw connection | |
| Width | 20 mm | |
| Rated Voltage | 500 V | |
| Degree of soiling | 3 | |
| Pin number | 2 pole | |
| Height | 24 mm | |
| Rated surge voltage | 6 kV | |
| Cable cross-section | 0.2-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
