2315256 | Phoenix Contact
Potential distributor, screw connection, 0.2-6.0 mm², 2 pole, 15 A, 2.2 kV, gray, 2315256
Unit Price (€ / pc.)
56.6559 € *
Available in 10 days: 914 pcs. - if ordered today
Total Price:
56.66 € *
Price list
Quantity
Price per unit*
1 pcs.
56.6559 €
5 pcs.
53.2525 €
15 pcs.
51.2295 €
50 pcs.
48.9447 €
150 pcs.
46.9098 €
*incl. VAT plus shipping costs
Subject to prior sale
Potential distributor, 2315256, Phoenix Contact

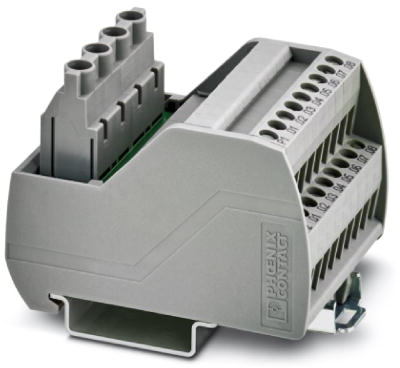

VARIOFACE module, with two equipotential busbars (P1, P2) for potential distribution, for mounting on NS 35 rails. Module width: 50.0 mm.
Features
- Consecutive numbering
- Separate supply
- Two potential levels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 250 V | |
| Height | 65.5 mm | |
| Degree of soiling | 2 | |
| AWG cross-section | AWG 24 to 10 | |
| Width | 50 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Pin number | 2 pole | |
| Length | 50 mm | |
| Connection | screw connection | |
| Colour | gray | |
| Rated current | 15 A | |
| Version | potential distributor | |
| Rated surge voltage | 2.2 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
