1923021 | Phoenix Contact
Through terminal block, screw connection, 0.2-4.0 mm², 3 pole, 32 A, 6 kV, gray, 1923021
Unit Price (€ / pc.)
4.9980 € *
Available in 5 Days: 40,062 pcs. - if ordered today
Total Price:
5.00 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9980 €
10 pcs.
4.6053 €
50 pcs.
4.1888 €
100 pcs.
3.7723 €
*incl. VAT plus shipping costs
Subject to prior sale

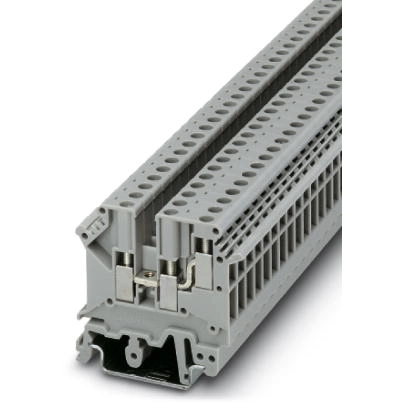

Feed-through terminal block, 1923021, Phoenix Contact
1-level terminal block with double connection on one side, cross section: 0.2 - 4 mm², AWG: 24 - 12, width: 6.2 mm, color: gray.
Features
- These twin modular terminal blocks are designed for the basic task of potential branching
- Universal foot for mounting on NS 35 or NS 32 DIN rails
- Two independent conductor connections can be used on the control cabinet side
- Easy connection of different types of conductors with different cross sections
- Can be bridged in the terminal center, even with neighboring feed-Feed-through terminal blocks aligned
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Width | 6.2 mm | |
| Colour | gray | |
| Rated surge voltage | 6 kV | |
| Pin number | 3 pole | |
| AWG cross-section | AWG 24 to 12 | |
| Length | 50.5 mm | |
| Degree of soiling | 3 | |
| Rated Voltage | 500 V | |
| Version | through terminal block | |
| Height | 38 mm | |
| Rated current | 32 A | |
| Cable cross-section | 0.2-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
