1544635 | Phoenix Contact
Through terminal block
Unit Price (€ / pc.)
1.2652 € *
Available in 5 Days: 8,889 pcs. - if ordered today
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2652 €
10 pcs.
1.1715 €
50 pcs.
1.0907 €
100 pcs.
1.0203 €
*incl. VAT plus shipping costs
Subject to prior sale

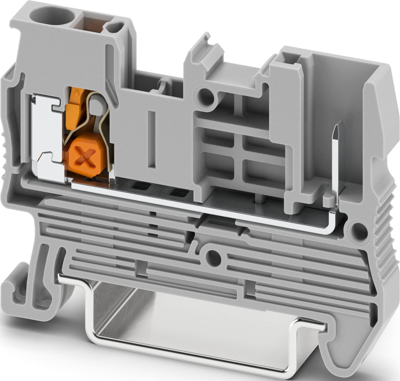

Feed-through terminal block, 1544635, Phoenix Contact
Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, number of connections: 2, number of positions: 1, connection method: Push-X-connection, Rated cross section: 2.5 mm², cross section: 0.5 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- The CLIPLINE complete COMBI terminal block ensures greater efficiency in control cabinet building through cable assemblies
- In addition to the classic features of the CLIPLINE complete system, the XT-COMBI terminal blocks are characterized by the modern XT connection technology and the option of plug-in capability
- The XT connection technology enables conductors to be connected directly and without tools, even without the addition of ferrules
- The COMBI plug-in zone is universal; all existing COMBI connectors can be used to establish a connection with it
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 1500 V | |
| Connection | Screw connection | |
| Rated current | 32 A | |
| Version | Fuse terminal block | |
| Pin number | 2 pole | |
| Width | 23 mm | |
| Height | 65.5 mm | |
| AWG cross-section | AWG 18 to 4 | |
| Degree of soiling | 3 | |
| Rated surge voltage | 6 kV | |
| Colour | black | |
| Length | 130 mm | |
| Cable cross-section | 0.75-25 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
