1221505 | Phoenix Contact

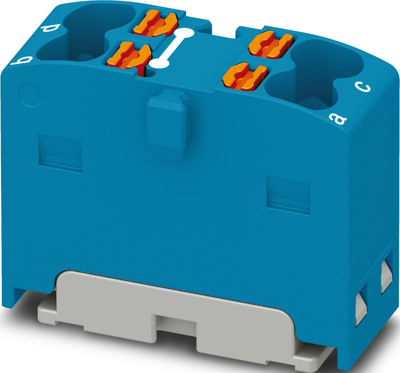

Distribution block, push-in connection, 0.14-1.5 mm², 14.5 A, 6 kV, blue, 1221505
Unit Price (€ / pc.)
2.7370 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.74 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7370 €
10 pcs.
2.5347 €
50 pcs.
2.3681 €
100 pcs.
2.2134 €
*incl. VAT plus shipping costs
Subject to prior sale
Distribution block, 1221505, Phoenix Contact
Distribution block, Ex e certified, mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: blue.
Features
- Convenient test options, thanks to test openings at every terminal point
- Space-saving potential distribution, thanks to compact micro potential distributors
- Flexible use, thanks to DIN rail and direct mounting
- Space-saving, thanks to the compact design
- Clear arrangement thanks to marking of all terminal points
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated Voltage | 440 V | |
| Connection | push-in connection | |
| AWG cross-section | AWG 26 to 16 | |
| Length | 17.7 mm | |
| Height | 21.6 mm | |
| Rated surge voltage | 6 kV | |
| Width | 8.3 mm | |
| Colour | blue | |
| Version | distribution block | |
| Cable cross-section | 0.14-1.5 mm² | |
| Rated current | 14.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
