1221439 | Phoenix Contact

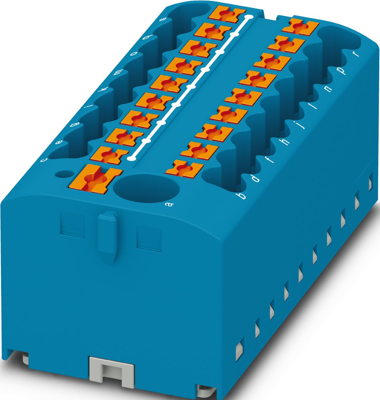

Distribution block, push-in connection, 0.5-10 mm², 40 A, 6 kV, blue, 1221439
Unit Price (€ / pc.)
13.6136 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
13.61 € *
Price list
Quantity
Price per unit*
1 pcs.
13.6136 €
10 pcs.
12.6973 €
50 pcs.
11.8881 €
100 pcs.
11.1741 €
*incl. VAT plus shipping costs
Subject to prior sale
Distribution block, 1221439, Phoenix Contact
Distribution block, Ex e-certified basic terminal block with feed-in, mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: blue.
Features
- Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
- Clear wiring, thanks to eleven different color variants
- Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
- Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
- Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 to 8 | |
| Length | 21.7 mm | |
| Rated current | 40 A | |
| Height | 28.6 mm | |
| Colour | blue | |
| Rated surge voltage | 6 kV | |
| Width | 56.5 mm | |
| Degree of soiling | 3 | |
| Connection | push-in connection | |
| Version | distribution block | |
| Rated Voltage | 440 V | |
| Cable cross-section | 0.5-10 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
