1179676 | Phoenix Contact
Through terminal block, screw connection, 1.5-25 mm², 76 A, 8 kV, white, 1179676
Unit Price (€ / pc.)
3.5419 € *
Available in 5 Days: 600 pcs. - if ordered today
Total Price:
3.54 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5419 €
10 pcs.
3.2889 €
50 pcs.
3.0696 €
100 pcs.
2.8778 €
*incl. VAT plus shipping costs
Subject to prior sale

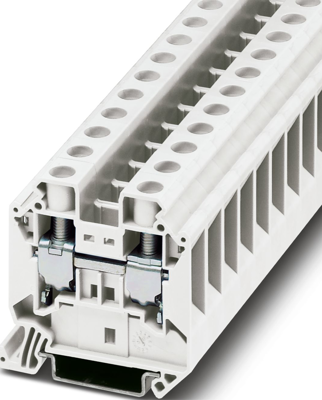

Feed-through terminal block, 1179676, Phoenix Contact
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 76 A, number of connections: 2, connection method: Screw connection, Rated cross section: 16 mm², cross section: 1.5 mm² - 25 mm², mounting type: NS 35/7,5, NS 35/15, color: white.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated Voltage | 1000 V | |
| Connection | screw connection | |
| AWG cross-section | AWG 14-4 | |
| Length | 55.5 mm | |
| Height | 62.5 mm | |
| Rated surge voltage | 8 kV | |
| Width | 12.2 mm | |
| Colour | white | |
| Version | through terminal block | |
| Cable cross-section | 1.5-25 mm² | |
| Rated current | 76 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
