1106767 | Phoenix Contact
Through terminal block, push-in connection, 0.14-4.0 mm², 4 pole, 24 A, 8 kV, purple, 1106767
Unit Price (€ / pc.)
1.9007 € *
Available in 5 Days: 2,300 pcs. - if ordered today
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9007 €
10 pcs.
1.7599 €
50 pcs.
1.6385 €
100 pcs.
1.5328 €
*incl. VAT plus shipping costs
Subject to prior sale

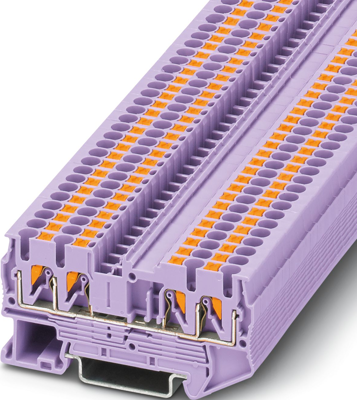

Feed-through terminal block, 1106767, Phoenix Contact
Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, number of connections: 4, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: violet.
Features
- The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
- The compact design and front connection enable wiring in a confined space
- In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
- Tested for railway applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26-14 | |
| Length | 72.2 mm | |
| Rated current | 24 A | |
| Height | 35.5 mm | |
| Colour | purple | |
| Rated surge voltage | 8 kV | |
| Width | 5.2 mm | |
| Degree of soiling | 3 | |
| Connection | push-in connection | |
| Pin number | 4 pole | |
| Version | through terminal block | |
| Rated Voltage | 800 V | |
| Cable cross-section | 0.14-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
