1091673 | Phoenix Contact

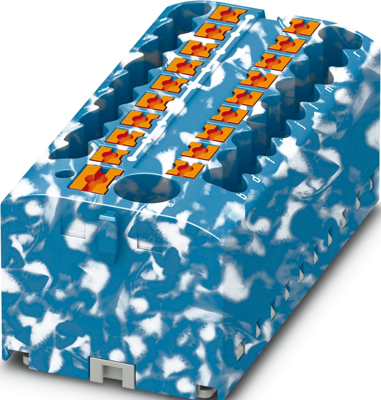

Distribution block, push-in connection, 0.5-10 mm², 41 A, 6 kV, multicoloured, 1091673
Unit Price (€ / pc.)
12.3879 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
12.39 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3879 €
10 pcs.
11.5549 €
50 pcs.
10.8171 €
100 pcs.
10.1745 €
*incl. VAT plus shipping costs
Subject to prior sale
Distribution block, 1091673, Phoenix Contact
Distribution block, Basic terminal block with supply, nom. voltage: 450 V, nominal current: 24 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm² - 4 mm², Push-in connection, Line contact, Rated cross section: 6 mm², cross section: 0.5 mm² - 10 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: blue/white
Features
- Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
- Clear wiring, thanks to eleven different color variants
- Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
- Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
- Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 450 V | |
| Number of terminals | 19 | |
| Height | 28.6 mm | |
| Degree of soiling | 3 | |
| AWG cross-section | AWG 20 to 8 | |
| Width | 56.5 mm | |
| Cable cross-section | 0.5-10 mm² | |
| Length | 21.7 mm | |
| Connection | push-in connection | |
| Colour | multicoloured | |
| Rated current | 41 A | |
| Version | distribution block | |
| Rated surge voltage | 6 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
