1075387 | Phoenix Contact
Through terminal block, screw connection, 0.2-10 mm², 41 A, 8 kV, gray, 1075387
Unit Price (€ / pc.)
10.0689 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
10.07 € *
Price list
Quantity
Price per unit*
1 pcs.
10.0689 €
10 pcs.
9.3976 €
50 pcs.
8.8103 €
100 pcs.
8.2920 €
*incl. VAT plus shipping costs
Subject to prior sale

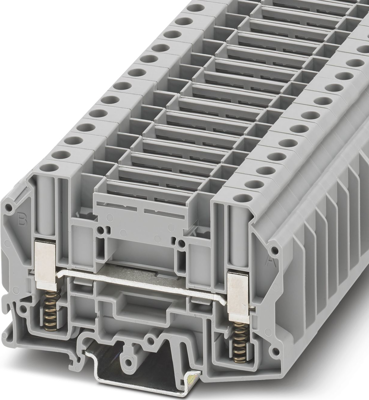

Feed-through terminal block, 1075387, Phoenix Contact
Feed-through terminal block, with spring support, nom. voltage: 1000 V, nominal current: 41 A, number of connections: 2, connection method: Screw connection with spring support, Rated cross section: 6 mm², 1 level, cross section: 0.2 mm² - 10 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated Voltage | 1000 V | |
| Connection | screw connection | |
| AWG cross-section | AWG 24-8 | |
| Length | 88.5 mm | |
| Height | 53 mm | |
| Rated surge voltage | 8 kV | |
| Width | 8.2 mm | |
| Colour | gray | |
| Version | through terminal block | |
| Cable cross-section | 0.2-10 mm² | |
| Rated current | 41 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
