1046952 | Phoenix Contact

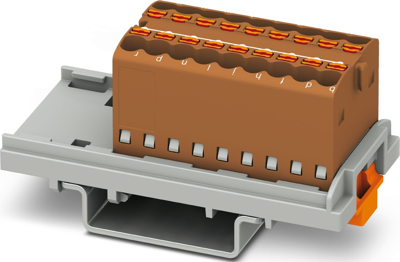

Distribution block, push-in connection, 0.14-2.5 mm², 17.5 A, 6 kV, brown, 1046952
Unit Price (€ / pc.)
11.6263 € *
Next delivery: 15 pcs. on 2025-08-11
Total Price:
11.63 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6263 €
10 pcs.
10.8409 €
50 pcs.
10.1507 €
100 pcs.
9.5438 €
*incl. VAT plus shipping costs
Subject to prior sale
Distribution block, 1046952, Phoenix Contact
Distribution block, bridged internally, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 18, connection method: Push-in connection, cross section: 0.14 mm² - 2.5 mm², mounting type: NS 35/15, NS 35/7,5, color: brown.
Features
- Convenient test options, thanks to test openings at every terminal point
- Space-saving potential distribution, thanks to compact micro potential distributors
- Flexible use, thanks to DIN rail and direct mounting
- Space-saving, thanks to the compact design
- Clear arrangement thanks to marking of all terminal points
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.14-2.5 mm² | |
| Colour | brown | |
| Rated current | 17.5 A | |
| Width | 21.6 mm | |
| Number of terminals | 18 | |
| Degree of soiling | 3 | |
| Connection | push-in connection | |
| Height | 58.1 mm | |
| AWG cross-section | AWG 26 to 14 | |
| Rated surge voltage | 6 kV | |
| Length | 28.4 mm | |
| Rated Voltage | 500 V | |
| Version | distribution block |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
