1035931 | Phoenix Contact

Plug, push-in connection, 0.14-4.0 mm², 5 pole, 24 A, 6 kV, gray, 1035931

Order No.: 65P0323
EAN: 4055626542065
MPN:
1035931
PP-H 2,5/5 (1GNYE/4GY)
Series: PP-H
1035931 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
4.0103 € *
Available: 0 pcs.
Available in 10 days: 450 pcs.
Leadtime: 2 Weeks **
Total Price:
4.01 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.0103 €

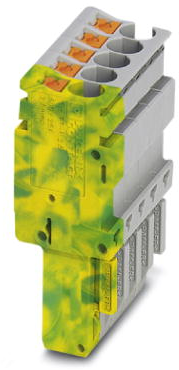

Plug, 1035931, Phoenix Contact

Plug, rated voltage: 500 V, nominal current: 24 A, connection method: Push-in connection, 1 level, Rated cross section: 2.5 mm², cross section: 0.14 mm²  - 4 mm², mounting type: Plug-in mounting, color: gray.

Features

  • Large-surface labeling option
  • The Push-in technology COMBI plugs for self-assembly provide solutions that users can implement themselves
Technical specifications
Version Stecker
Number of terminals 4
Pin number 5-polig
Cable cross-section 0,14-4,0 mm²
AWG cross-section AWG 26 bis 12
Rated surge voltage 6 kV
Rated current 24 A
Rated Voltage 500 V
Degree of soiling 3
Length 15.8 mm
Width 25.8 mm
Height 40.2 mm
Connection Push-in-Anschluss
Colour grau
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
