0852067 | Phoenix Contact
Through terminal block, screw connection, 0.2-4.0 mm², 24 A, 8 kV, gray, 0852067
Unit Price (€ / pc.)
5.4336 € *
Available in 5 Days: 6,381 pcs. - if ordered today
Total Price:
5.43 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4336 €
10 pcs.
5.0714 €
50 pcs.
4.7544 €
100 pcs.
4.4747 €
*incl. VAT plus shipping costs
Subject to prior sale

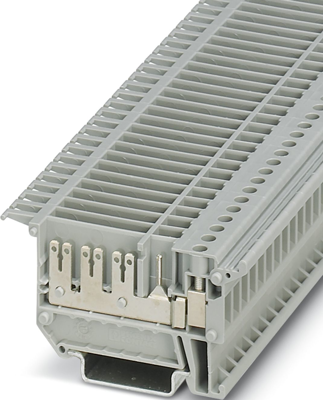

Feed-through terminal block, 0852067, Phoenix Contact
Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, 1st level connection right, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 4 mm², connection method: Spade connection, mounting: NS 35/7,5, NS 35/15, color: gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated Voltage | 800 V | |
| Connection | screw connection | |
| AWG cross-section | AWG 24-12 | |
| Length | 72 mm | |
| Height | 39.5 mm | |
| Rated surge voltage | 8 kV | |
| Width | 6.2 mm | |
| Colour | gray | |
| Version | through terminal block | |
| Cable cross-section | 0.2-4.0 mm² | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
