1692718 | Phoenix Contact
PHOENIX CO 1692718
Unit Price (€ / pc.)
150.7849 € *
Available in 5 Days: 2 pcs. - if ordered today

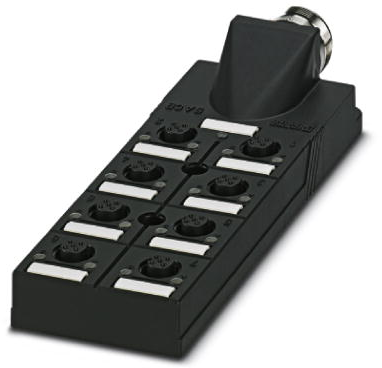

Sensor/actuator box, 1692718, Phoenix Contact
Sensor/actuator box, Application: standard, Connection method: M12 socket plastic, Number of slots: 8, Number of positions: 4, Coding: A-standard, Slot assignment: single, Status display: yes, PNP; Master cable connection: M23 plug connection 180°, Shielding: no
Features
- Safety in the field, thanks to molded housing and high degree of protection
- Convenient: increased machine availability thanks to quick and easy diagnostics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65/IP67 | |
| Bus Input | M12 (4 pole, A coded, socket) | |
| Signal type | PNP | |
| Power Input | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
