1692446 | Phoenix Contact
Sensor/actuator distribution box with M12 sockets, M12 Buchse, 8, true
Unit Price (€ / pc.)
137.8972 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
137.90 € *
Price list
Quantity
Price per unit*
1 pcs.
137.8972 €
3 pcs.
133.7560 €
10 pcs.
129.1507 €
25 pcs.
125.7354 €
100 pcs.
120.2019 €
*incl. VAT plus shipping costs
Subject to prior sale

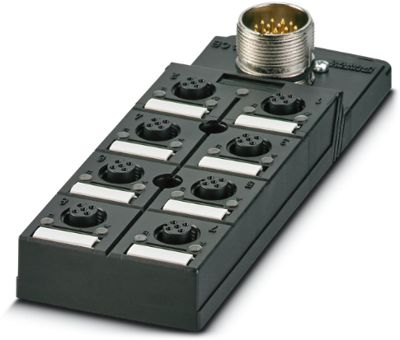

Distributor box, 1692446, Phoenix Contact
Distributor box, application: Standard, connection method: M12 socket Plastic, number of slots: 8, number of positions: 4, coding: A, slot assignment: single, status display: Yes, PNP; master cable connection: M23 plug connection 90°, shielding: no.
Features
- Safety in the field, thanks to molded housing and high degree of protection
- Convenient: increased machine availability thanks to quick and easy diagnostics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65/IP67 | |
| Bus Input | M12 (4 pole, A coded, socket) | |
| Power Input | M12 | |
| Signal type | PNP |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
