1718413 | Phoenix Contact

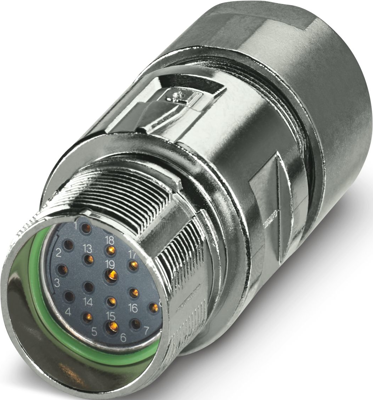

Jack, M23, 19 pole, crimp connection, ONECLICK quick locking system, straight, 1718413
Unit Price (€ / pc.)
17.8500 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
17.85 € *
Price list
Quantity
Price per unit*
1 pcs.
17.8500 €
10 pcs.
16.0650 €
25 pcs.
15.0654 €
50 pcs.
14.1729 €
*incl. VAT plus shipping costs
Subject to prior sale
Coupler connector, 1718413, Phoenix Contact
M23, Coupler connector, series: M23 PRO, straight, shielded: yes, for standard and ONECLICK fast locking system, No. of position: 16+3, Direction of rotation: Standard, Contact connection type: Socket, Crimp connection, Cable diameter range: 4 mm - 8.5 mm, Coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).
Features
- Solutions with cross-manufacturer compatibility for standard and fast locking systems
- Modern, consistent design for highly convenient operation
- All housing can be fitted with pin or socket contacts
- Safe use in the field, thanks to high degree of protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | ONECLICK quick locking system | |
| Coding | N | |
| Pin number | 19 pole | |
| Thread size | M23 | |
| Degree of protection (IP) | IP66/IP68 | |
| Contact connection | crimp connection | |
| Product type | jack | |
| Version | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
