1687981 | Phoenix Contact
Panel plug, M12, 8 pole, strand connection, push pull, straight, 1687981
Unit Price (€ / pc.)
17.5287 € *
Available in 10 days: 4 pcs. - if ordered today
Total Price:
17.53 € *
Price list
Quantity
Price per unit*
1 pcs.
17.5287 €
10 pcs.
16.3387 €
50 pcs.
15.3034 €
100 pcs.
14.3871 €
*incl. VAT plus shipping costs
Subject to prior sale

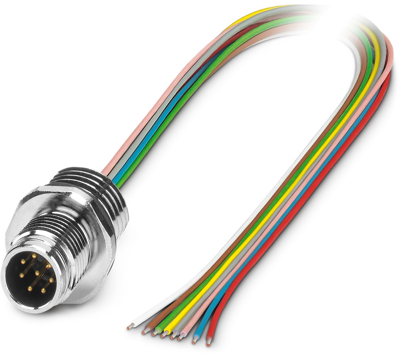

Device connector front mounting, 1687981, Phoenix Contact
Device connector front mounting, Universal, 8-position, Pin, straight, M12-Push-pull external locking, coding: A, on free cable end, Front mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 0.25 mm², TPE litz wire, potted, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).
Features
- Preassembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Product type | panel plug | |
| Contact connection | strand connection | |
| Degree of protection (IP) | IP65/IP67 | |
| Orientation | straight | |
| contact surface | nickel-plated/gold-plated | |
| Pin number | 8 pole | |
| Type of locking | push pull | |
| Thread size | M12 | |
| Assembly | front panel mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
