1685518 | Phoenix Contact

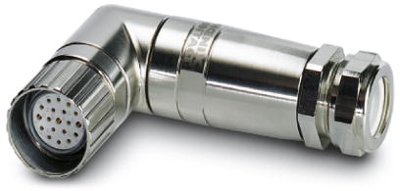

Jack, M23, 19 pole, solder connection, screw locking, angled, 1685518
Unit Price (€ / pc.)
107.3618 € *
Standard delivery time from the manufacturer is: 4 Weeks
Sensor-actuator connector, 1685518, Phoenix Contact
Socket M23, 19-pole, angled, shielded, freely configurable, with solder connection, for external cable diameter 9.5 mm - 14.5 mm.
Features
- Shielded
- Angled socket
- Without LED
- Contact material: CuZn
- Degree of protection: IP65, IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Thread size | M23 | |
| Orientation | angled | |
| Degree of protection (IP) | IP65/IP67 | |
| Product type | jack | |
| Pin number | 19 pole | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
