1681499 | Phoenix Contact

Socket, M12, 5 pole, screw connection, screw locking, angled, 1681499

Order No.: 67F6014
EAN: 4017918157418
MPN:
1681499
SACC-M12FR-5CON-PG9-M
Series: SACC

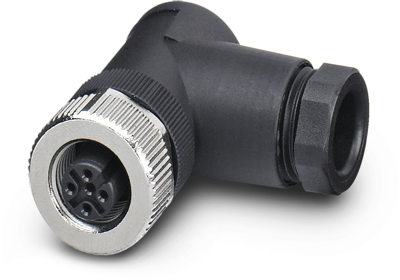

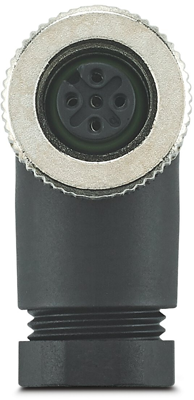

1681499 Phoenix Contact Sensor-Actuator Connectors Image 1
1681499 Phoenix Contact Sensor-Actuator Connectors Image 2
1681499 Phoenix Contact Sensor-Actuator Connectors Image 3
Image may differ
Unit Price (€ / pc.)
19.5041 € *
Available in 10 days: 893 pcs. - if ordered today
Total Price:
19.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
19.5041 €

Socket, 1681499, Phoenix Contact

Connector, Universal, 5-position, Socket angled M12, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6 mm - 8 mm.

Features

  • Safe use in the field, thanks to high degree of protection
  • A-coded
  • Overvoltage category: II
  • Pollution degree: 3
  • Contact material: CuZn
  • Degree of protection: IP67
Technical specifications
Pin number 5 pole
Type of locking screw locking
Additional parts equipped
Contact connection screw connection
Product type socket
Coding A
Assembly cable assembly
Orientation angled
Degree of protection (IP) IP67
Thread size M12
contact surface CuSnZn
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
