1681486 | Phoenix Contact
Jack, M12, 5 pole, screw connection, screw locking, straight, 1681486
Unit Price (€ / pc.)
18.0047 € *
Available in 5 Days: 3,366 pcs. - if ordered today
Total Price:
18.00 € *
Price list
Quantity
Price per unit*
1 pcs.
18.0047 €
10 pcs.
15.8389 €
*incl. VAT plus shipping costs
Subject to prior sale

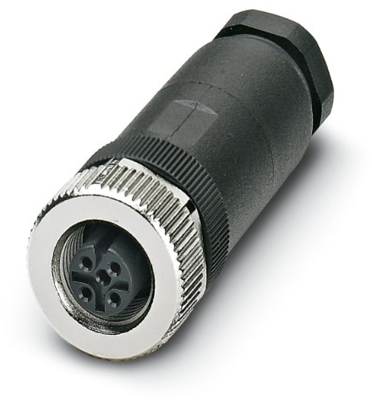

Socket, 1681486, Phoenix Contact
Connector, Universal, 5-position, Socket straight M12, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6 mm - 8 mm.
Features
- Safe use in the field, thanks to high degree of protection
- A-coded
- Overvoltage category: II
- Pollution degree: 3
- Contact material: CuZn
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Coding | A | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| contact surface | CuSnZn | |
| Degree of protection (IP) | IP67 | |
| Contact connection | screw connection | |
| Product type | jack | |
| Assembly | cable assembly |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
