1681460 | Phoenix Contact

Plug, M12, 5 pole, screw connection, screw locking, straight, 1681460

Order No.: 67F6008
EAN: 4017918157432
MPN:
1681460
SACC-M12MS-5CON-PG9-M
Series: SACC

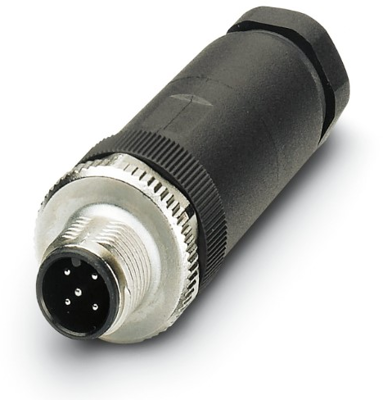

1681460 Phoenix Contact Sensor-Actuator Connectors Image 1
1681460 Phoenix Contact Sensor-Actuator Connectors Image 2
1681460 Phoenix Contact Sensor-Actuator Connectors Image 3
Image may differ
Unit Price (€ / pc.)
18.0047 € *
Available: 15 pcs.
Available in 10 days: 4,579 pcs. - if ordered today
Total Price:
18.00 € *
Price list
Quantity
Price per unit*
1 pcs.
18.0047 €
10 pcs.
15.8389 €
50 pcs.
14.7560 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug, 1681460, Phoenix Contact

Connector, Universal, 5-position, plug straight M12, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6 mm - 8 mm.

Features

  • Safe use in the field, thanks to high degree of protection
  • A-coded
  • Overvoltage category: II
  • Pollution degree: 3
  • Contact material: CuZn
  • Degree of protection: IP67
Technical specifications
Pin number 5 pole
Type of locking screw locking
Additional parts equipped
Contact connection screw connection
Product type plug
Coding A
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M12
contact surface CuSnZn
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
