1681185 | Phoenix Contact

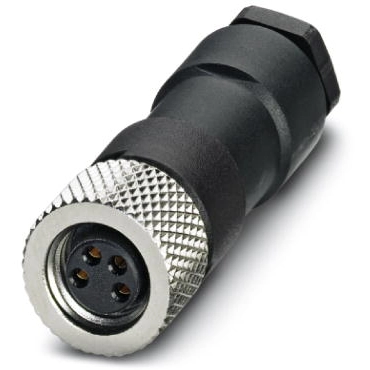

Jack, M8, 4 pole, solder connection, screw locking, straight, 1681185
Unit Price (€ / pc.)
26.8583 € *
Available in 5 Days: 1,190 pcs. - if ordered today
Total Price:
26.86 € *
Price list
Quantity
Price per unit*
1 pcs.
26.8583 €
10 pcs.
24.4426 €
50 pcs.
21.9912 €
100 pcs.
19.3613 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 1681185, Phoenix Contact
Connector, Universal, 4-position, Socket straight M8, Solder connection, knurl material: Nickel-plated brass, external cable diameter 3.5 mm - 5 mm.
Features
- Safe use in the field, thanks to a high degree of protection
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Thread size | M8 | |
| Orientation | straight | |
| Product type | jack | |
| Coding | A | |
| Assembly | cable assembly | |
| Type of locking | screw locking | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
