1681156 | Phoenix Contact

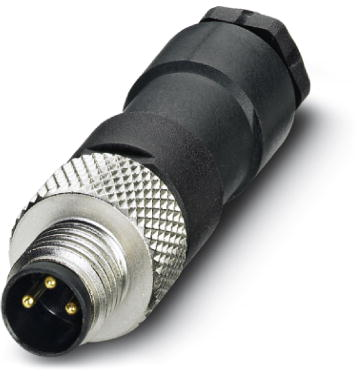

Plug, M8, 3 pole, solder connection, Screw locking, straight, 1681156
Order No.: 61P9142
MPN:
1681156
SACC-M 8MS-3CON-M
EAN: 4017918157500
Images may differ
Unit Price (€ / pc.)
23.4192 € *
Available: 3 pcs.
Leadtime: 2 Weeks **
Total Price:
23.42 € *
Quantity
Price per unit*
1 pcs.
23.4192 €
10 pcs.
20.6108 €
50 pcs.
19.2066 €
150 pcs.
18.3617 €
500 pcs.
17.4335 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Sensor-actuator connector, 1681156, Phoenix Contact
Connector, Universal, 3-position, plug straight M8, Solder connection, knurl material: Nickel-plated brass, external cable diameter 3.5 mm - 5 mm.
Features
- Safe use in the field, thanks to a high degree of protection
- A-coded
- Pollution degree: 3
- Overvoltage category: II
- Degree of protection: IP67
Technical specifications
| Version | plug | |
| Thread size | M8 | |
| Coding | A | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | Screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
