1671098 | Phoenix Contact
Panel socket, M12, 5 pole, strand connection, straight, 1671098
Unit Price (€ / pc.)
16.0888 € *
Available: 10 pcs.
Total Price:
16.09 € *
Price list
Quantity
Price per unit*
1 pcs.
16.0888 €
10 pcs.
14.1729 €
15 pcs.
13.1971 €
25 pcs.
12.6259 €
50 pcs.
11.9833 €
*incl. VAT plus shipping costs
Subject to prior sale

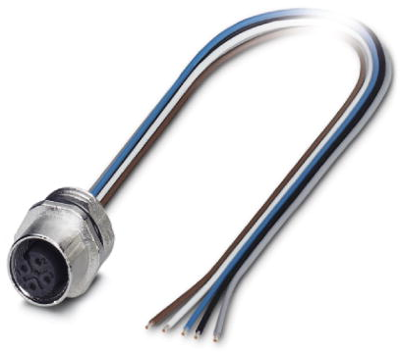

Device connector, 1671098, Phoenix Contact

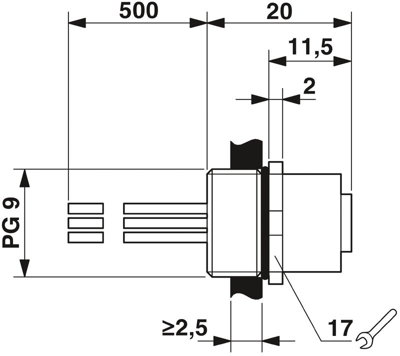

Device connector front mounting, Universal, 5-position, Flush-type female connector, Straight, M12-Standard, Coding: A , on free cable end, Pg9, Individual wires, Cable length: 0.5 m, 0.34 mm², TPE litz wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
- For high transmission safety: shield connection to the housing with optional EMC nut
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Version | cable 0.5 m | |
| Pin number | 5 pole | |
| Thread size | M12 | |
| Coding | A | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | nickel-plated/gold-plated | |
| Additional parts | equipped | |
| Assembly | front mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
