1663129 | Phoenix Contact

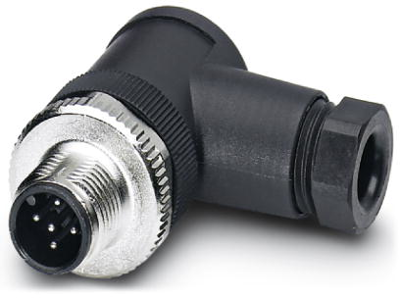

Plug, M12, 5 pole, screw connection, screw locking, angled, 1663129

Order No.: 61P9252
EAN: 4017918116590
MPN:
1663129
SACC-M12MR-5CON-PG 7-M
Series: SACC
1663129 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
26.7036 € *
Available in 10 days: 772 pcs. - if ordered today
Total Price:
26.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.7036 €

Sensor-actuator connector, 1663129, Phoenix Contact

Connector, Universal, 5-position, Plug angled M12, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg7, external cable diameter 4 mm - 6 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • A-coded
  • Pollution degree: 3
  • Overvoltage category: II
  • Degree of protection: IP67
Technical specifications
Filter Property Value
Orientation angled
Assembly cable assembly
Pin number 5 pole
Contact connection screw connection
Product type plug
Degree of protection (IP) IP67
Type of locking screw locking
Coding A
Thread size M12
contact surface CuSnZn
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
