1629222 | Phoenix Contact

Jack, M23, 9 pole, crimp connection, screw locking, straight, 1629222

Order No.: 62P5725
EAN: 4055626618555
MPN:
1629222
M23-09S1N8A8003
Series: M23 PRO

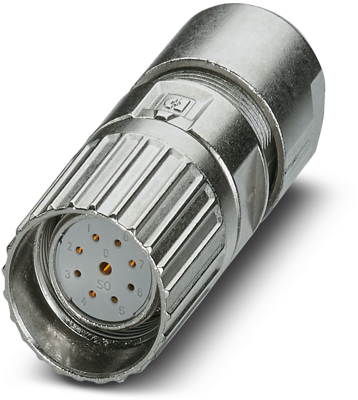

1629222 Phoenix Contact Sensor-Actuator Connectors Image 1
1629222 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
18.0047 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
18.00 € *
Price list
Quantity
Price per unit*
1 pcs.
18.0047 €
10 pcs.
16.7790 €
25 pcs.
15.7199 €
50 pcs.
14.7798 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connector, 1629222, Phoenix Contact

M23, Cable connector, series: M23 PRO, straight, shielded: yes, Screw locking mechanism, Number of positions: 8+1, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, cable diameter range: 6 mm - 10 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Solutions with cross-manufacturer compatibility for standard and fast locking systems
  • Reliable under the harshest conditions: cable connectors with vibration brake
  • Modern, consistent design for highly convenient operation
  • Easy, cost-effective cable assembly: uniform shielding of M17 to M40
Technical specifications
Filter Property Value
Coding N
Degree of protection (IP) IP66/IP68/IP69K
Contact connection crimp connection
Orientation straight
Assembly cable assembly
Type of locking screw locking
Pin number 9 pole
Product type jack
Thread size M23
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
