1629208 | Phoenix Contact

Plug, M23, 12 pole, crimp connection, screw locking, straight, 1629208

Order No.: 64P5986
EAN: 4055626618418
MPN:
1629208
Series: M23 PRO

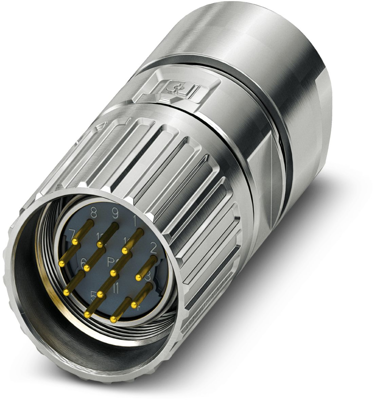

1629208 Phoenix Contact Sensor-Actuator Connectors Image 1
1629208 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
18.0047 € *
Available in 10 days: 2 pcs. - if ordered today
Total Price:
18.00 € *
Price list
Quantity
Price per unit*
1 pcs.
18.0047 €
10 pcs.
16.7790 €
25 pcs.
15.7199 €
50 pcs.
14.7798 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connector, 1629208, Phoenix Contact

M23, Cable connector, Series: M23 PRO, straight, shielded: yes, Screw locking mechanism, number of positions: 12, Drehsinn: Standard, contact connection type: Stift, Crimp connection, cable diameter range: 3 mm - 15 mm, Kodierung: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Solutions with cross-manufacturer compatibility for standard and fast locking systems
  • Reliable under the harshest conditions: cable connectors with vibration brake
  • Modern, consistent design for highly convenient operation
  • Easy, cost-effective cable assembly: uniform shielding of M17 to M40
Technical specifications
Filter Property Value
Pin number 12 pole
Contact connection crimp connection
Assembly cable assembly
Product type plug
Coding N
Orientation straight
Degree of protection (IP) IP66/IP68/IP69K
Thread size M23
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
