1628911 | Phoenix Contact

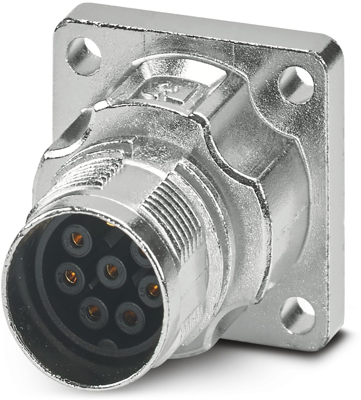

Surface mount socket, M17, 8 pole, crimp connection, standard/ONECLICK quick locking system, straight, 1628911
Unit Price (€ / pc.)
10.9480 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
10.95 € *
Price list
Quantity
Price per unit*
1 pcs.
10.9480 €
10 pcs.
10.2102 €
50 pcs.
9.5557 €
100 pcs.
8.9845 €
*incl. VAT plus shipping costs
Subject to prior sale
Device connector front mounting, 1628911, Phoenix Contact
M17, Device connector front mounting, series: M17 PRO, straight, shielded: yes, for standard and ONECLICK fast locking system, No. of pos.: 7+PE, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, flange dimensions: 26 mm x 26 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).
Features
- Solutions with cross-manufacturer compatibility for standard and fast locking systems
- Modern, consistent design for highly convenient operation
- Crimping connection: vibration- and temperature-resistant assembly
- All housing can be fitted with pin or socket contacts
- Safe use in the field, thanks to high degree of protection
Technical specifications
| Pin number | 8 pole | |
| Type of locking | standard/ONECLICK quick locking system | |
| Contact connection | crimp connection | |
| Product type | surface mount socket | |
| Coding | N | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP67/IP68 | |
| Thread size | M17 |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
