1628498 | Phoenix Contact

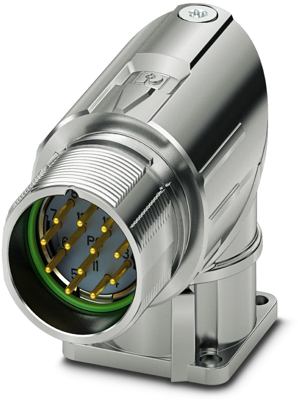

Surface-mounting plug, M23, 12 pole, crimp connection, standard/ONECLICK quick locking system, angled, 1628498

Order No.: 64P6471
EAN: 4055626622132
MPN:
1628498
Series: M23 PRO
1628498 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
15.6604 € *
Available in 10 days: 8 pcs. - if ordered today
Total Price:
15.66 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6604 €
10 pcs.
14.6013 €
50 pcs.
13.6731 €
100 pcs.
12.8639 €
*incl. VAT plus shipping costs
Subject to prior sale

Device connector front mounting, 1628498, Phoenix Contact

M23, Device connector front mounting, series: M23 PRO Signal, angled rotatable, shielded: yes, for standard and ONECLICK fast locking system, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, flange dimensions: 26 mm x 26 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Solutions with cross-manufacturer compatibility for standard and fast locking systems
  • Modern, consistent design for highly convenient operation
  • Crimping connection: vibration- and temperature-resistant assembly
  • All housing can be fitted with pin or socket contacts
  • Safe use in the field, thanks to high degree of protection
Technical specifications
Type of locking standard/ONECLICK quick locking system
Pin number 12 pole
Contact connection crimp connection
Product type surface-mounting plug
Coding N
Thread size M23
Orientation angled
Degree of protection (IP) IP67/IP68
Assembly panel mounting
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
