1628492 | Phoenix Contact

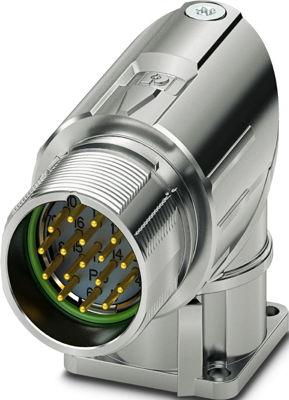

Surface mounted plug, M23, 17 pole, crimp connection, ONECLICK quick locking system, angled, 1628492
Unit Price (€ / pc.)
15.9579 € *
Available in 5 Days: 11 pcs. - if ordered today
Total Price:
15.96 € *
Price list
Quantity
Price per unit*
1 pcs.
15.9579 €
10 pcs.
14.3633 €
50 pcs.
13.4589 €
100 pcs.
12.6735 €
*incl. VAT plus shipping costs
Subject to prior sale
Device connector front mounting, 1628492, Phoenix Contact

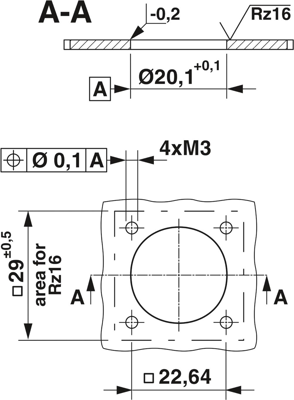

M23, Device connector front mounting, series: M23 PRO, angled rotatable, shielded: yes, for standard and ONECLICK fast locking system, No. of position: 17, Direction of rotation: Standard, Contact connection type: Pin, Crimp connection, Flange dimensions: 28 mm x 28 mm, Coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).
Features
- Solutions with cross-manufacturer compatibility for standard and fast locking systems
- Modern, consistent design for highly convenient operation
- All housing can be fitted with pin or socket contacts
- Safe use in the field, thanks to high degree of protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Type of locking | ONECLICK quick locking system | |
| Coding | N | |
| Pin number | 17 pole | |
| Thread size | M23 | |
| Degree of protection (IP) | IP66/IP68 | |
| Contact connection | crimp connection | |
| Product type | surface mounted plug | |
| Assembly | front/square flange mounting | |
| Version | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
