1628484 | Phoenix Contact

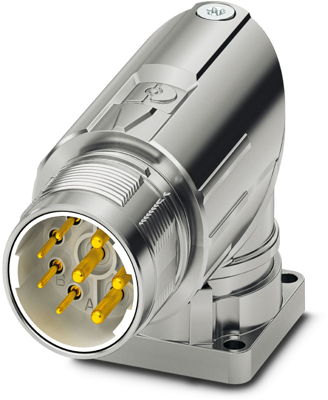

Surface-mounting plug, M23, 8 pole, crimp connection, standard/ONECLICK quick locking system, angled, 1628484

Order No.: 64P6488
EAN: 4055626622156
MPN:
1628484
Series: M23 PRO
1628484 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
17.8262 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
17.83 € *
Price list
Quantity
Price per unit*
1 pcs.
17.8262 €
10 pcs.
16.6243 €
50 pcs.
15.5652 €
100 pcs.
14.6370 €
*incl. VAT plus shipping costs
Subject to prior sale

Device connector front mounting, 1628484, Phoenix Contact

M23, Device connector front mounting, series: M23 PRO, angled rotatable, shielded: yes, for standard and ONECLICK fast locking system, No. of pos.: 4+3+PE, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, flange dimensions: 28 mm x 28 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Solutions with cross-manufacturer compatibility for standard and fast locking systems
  • Modern, consistent design for highly convenient operation
  • Crimping connection: vibration- and temperature-resistant assembly
  • All housing can be fitted with pin or socket contacts
  • Safe use in the field, thanks to high degree of protection
Technical specifications
Pin number 8 pole
Type of locking standard/ONECLICK quick locking system
Contact connection crimp connection
Product type surface-mounting plug
Coding N
Assembly panel mounting
Orientation angled
Degree of protection (IP) IP66/IP68/IP69K
Thread size M23
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
