1627032 | Phoenix Contact

Socket, M23, 8 pole, crimp connection, SPEEDCON locking, straight, 1627032

Order No.: 62P4166
EAN: 4055626289717
MPN:
1627032
SF-7ES1N8A80A5S
Series: SF
1627032 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
45.6127 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
45.61 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
45.6127 €

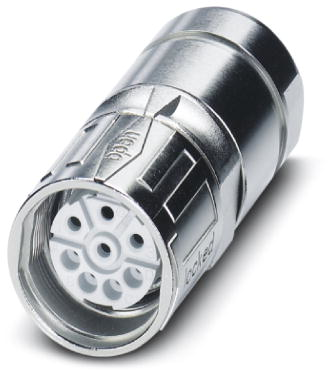

Sensor-actuator connector, 1627032, Phoenix Contact

Cable connector, straight short, SPEEDCON locking, M23, number of positions: 4+3+PE, type of contact: Socket, cable diameter range: 5.5 mm - 8.5 mm, number of positions: 8, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Pin number 8 pole
Type of locking SPEEDCON locking
Contact connection crimp connection
Product type socket
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M23
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
