1624639 | Phoenix Contact

Jack, M17, 9 pole, crimp connection, SPEEDCON locking, straight, 1624639

Order No.: 62P4786
EAN: 4046356623001
MPN:
1624639
ST-8ES1N8A8005S
Series: ST
1624639 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
29.7857 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
29.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
29.7857 €

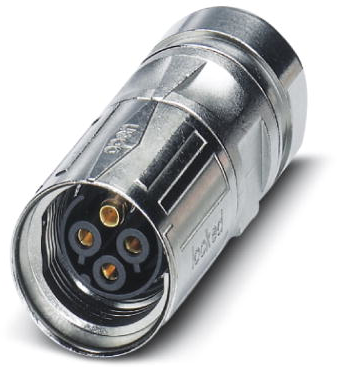

Sensor-actuator connector, 1624639, Phoenix Contact

Cable connector, straight, SPEEDCON locking, M17, number of positions: 5+3+PE, type of contact: Socket, flange dimensions: 25.75 mm x 25.75 mm, cable diameter range: 10 mm - 12.5 mm, number of positions: 9, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Degree of protection (IP) IP67
Assembly cable assembly
Coding N
Thread size M17
Orientation straight
Type of locking SPEEDCON locking
Product type jack
Contact connection crimp connection
Pin number 9 pole
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
