1624543 | Phoenix Contact

Jack, M17, 6 pole, crimp connection, screw locking, straight, 1624543

Order No.: 62P4624
EAN: 4046356622356
MPN:
1624543
ST-5ES1N8A8005
Series: ST
1624543 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
17.0408 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
511.22 € *
*incl. VAT plus shipping costs
Subject to prior sale
30 pcs.
17.0408 €

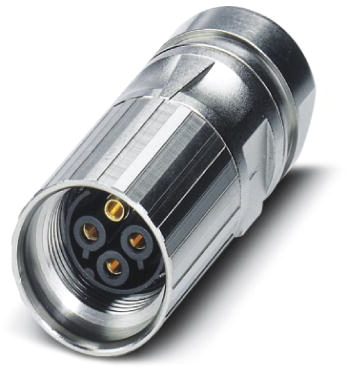

Sensor-actuator connector, 1624543, Phoenix Contact

Cable connector, straight, Screw locking, M17, number of positions: 5+PE, type of contact: Socket, cable diameter range: 10 mm - 12.5 mm, number of positions: 6, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Filter Property Value
Coding N
Type of locking screw locking
Thread size M17
Degree of protection (IP) IP67
Orientation straight
Pin number 6 pole
Assembly cable assembly
Contact connection crimp connection
Product type jack
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
