1624534 | Phoenix Contact

Plug, M17, 4 pole, crimp connection, screw locking, straight, 1624534

Order No.: 62P4542
EAN: 4046356622691
MPN:
1624534
ST-3EP1N8A8005
Series: ST
1624534 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
26.1919 € *
Available in 10 days: 7 pcs. - if ordered today
Total Price:
26.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.1919 €

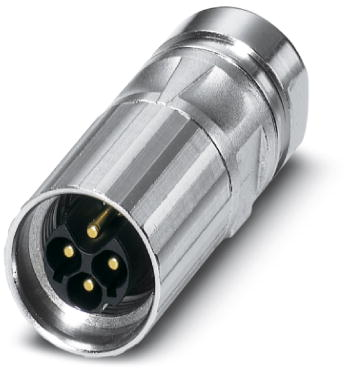

Sensor-actuator connector, 1624534, Phoenix Contact

Cable connector, straight, Screw locking, M17, number of positions: 3+PE, type of contact: Pin, cable diameter range: 10 mm - 12.5 mm, number of positions: 4, connection method: Crimp connection.

Features

  • Shielded
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • N-coded
  • Overvoltage category: III
  • Degree of protection: IP67
  • Seal material: FPM

Applications

  • For power applications
Technical specifications
Orientation straight
Degree of protection (IP) IP67
Type of locking screw locking
Assembly cable assembly
Pin number 4 pole
Coding N
Thread size M17
Contact connection crimp connection
Product type plug
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
SVHC free No
