1623836 | Phoenix Contact

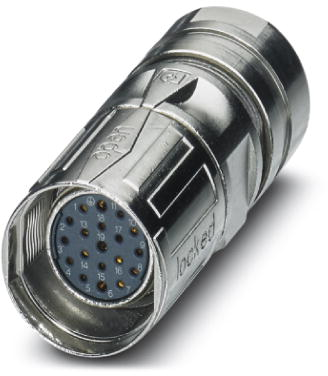

Socket, M23, 19 pole, crimp connection, SPEEDCON locking, straight, 1623836

Order No.: 62P0596
EAN: 4055626228570
MPN:
1623836
CA-1RS1N8A8006S
Series: CA
1623836 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
45.9816 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
45.98 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
45.9816 €

Sensor-actuator connector, 1623836, Phoenix Contact

Cable connector, CA, straight, SPEEDCON locking, M23, No. of pole: 16+2+FE, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 4 mm - 6 mm.

Features

  • Shielded
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Crimping connection: vibration- and temperature-resistant assembly
  • Circular connector
Technical specifications
Type of locking SPEEDCON locking
Coding N
Degree of protection (IP) IP67
Assembly cable assembly
Contact connection crimp connection
Pin number 19 pole
Version socket
Orientation straight
Thread size M23
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
