1623834 | Phoenix Contact

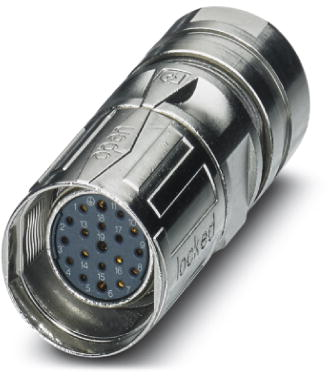

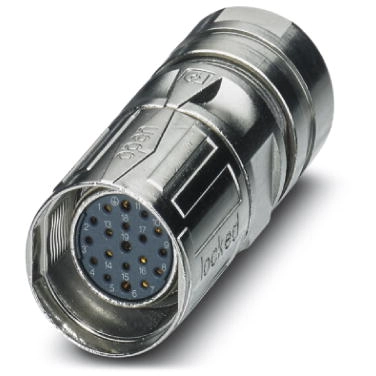

Socket, M23, 19 pole, crimp connection, SPEEDCON locking, straight, 1623834

Order No.: 62P0598
EAN: 4055626228426
MPN:
1623834
CA-1RS1N8A8007S
Series: CA
1623834 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
45.8269 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
45.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
45.8269 €

Sensor-actuator connector, 1623834, Phoenix Contact

Cable connector, CA, straight, SPEEDCON locking, M23, No. of pole: 16+2+FE, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 6 mm - 10 mm.

Features

  • Shielded
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Crimping connection: vibration- and temperature-resistant assembly
  • Circular connector
Technical specifications
Pin number 19 pole
Type of locking SPEEDCON locking
Contact connection crimp connection
Product type socket
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M23
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
