1623694 | Phoenix Contact

Plug, M40, 13 pole, crimp connection, SPEEDCON locking, straight, 1623694

Order No.: 62P3976
EAN: 4055626194318
MPN:
1623694
SB-8EPCD8A8L34S
Series: SB
1623694 Phoenix Contact Sensor-Actuator Connectors

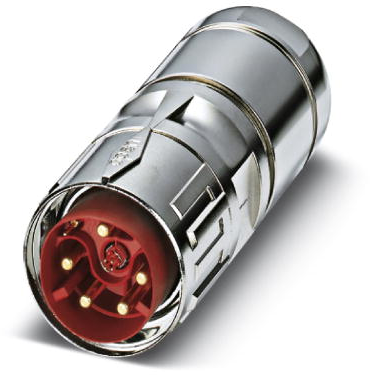

Image may differ
Unit Price (€ / pc.)
128.9722 € *
Available in 10 days: 1 pcs. - if ordered today
Total Price:
128.97 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
128.9722 €

Sensor-actuator connector, 1623694, Phoenix Contact

Cable connector, SB, straight long, SPEEDCON locking, M40, No. of pole: 4+4+4+PE / 3+N+PE, Direction of rotation: Standard, type of contact: Pin, Crimp connection, cable diameter range: 20.5 mm - 26.5 mm, coding: CAT5, coding 2.

Features

  • Safe use in the field, thanks to a high degree of protection
  • Fast locking system
  • Mechanical coding reliably prevents incorrect connections
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • CAT5 data interface for up to 100 Mbps

Applications

  • For transmission of signals
  • For data transimission
  • For power transimission
Technical specifications
Filter Property Value
Pin number 13 pole
Contact connection crimp connection
Assembly cable assembly
Product type plug
Coding Cat 5, coding 2
Orientation straight
Degree of protection (IP) IP68/IP69K
Thread size M40
Type of locking SPEEDCON locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
