1623683 | Phoenix Contact

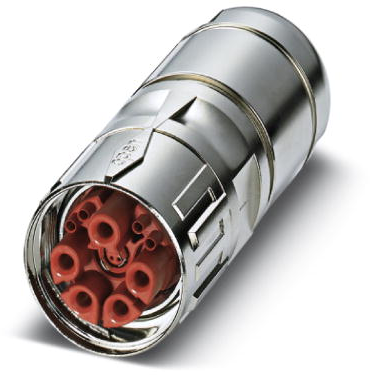

Jack, M40, 13 pole, crimp connection, screw locking, straight, 1623683

Order No.: 62P4006
EAN: 4055626194011
MPN:
1623683
SB-8ESCD8A8L32S
Series: SB
1623683 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
119.2023 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
119.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
119.2023 €

Sensor-actuator connector, 1623683, Phoenix Contact

Cable connector, SB, straight long, SPEEDCON locking, M40, No. of pole: 4+4+4+PE / 3+N+PE, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 9 mm - 14 mm, coding: CAT5, coding 2.

Features

  • Safe use in the field, thanks to a high degree of protection
  • Fast locking system
  • Mechanical coding reliably prevents incorrect connections
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • CAT5 data interface for up to 100 Mbps

Applications

  • For transmission of signals
  • For data transimission
  • For power transimission
Technical specifications
Coding Cat 5, coding 2
Type of locking screw locking
Thread size M40
Degree of protection (IP) IP68/IP69K
Orientation straight
Pin number 13 pole
Assembly cable assembly
Contact connection crimp connection
Product type jack
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
