1623346 | Phoenix Contact

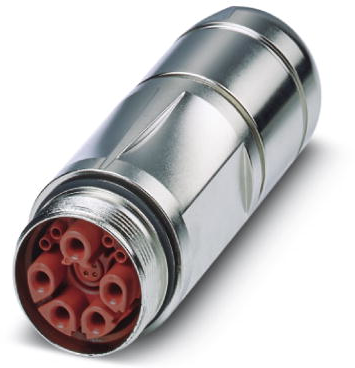

Socket, M40, 13 pole, crimp connection, SPEEDCON locking, straight, 1623346

Order No.: 62P4019
EAN: 4055626195063
MPN:
1623346
SB-8ESSA8A9L34S
Series: SB
1623346 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
152.7484 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
152.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
152.7484 €

Coupler connector, 1623346, Phoenix Contact

Coupler connector, SB, straight long, for standard and SPEEDCON interlock, M40, No. of pole: 8+4+PE, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 20.5 mm - 26.5 mm, coding: Signal, coding 1.

Features

  • Safe use in the field, thanks to a high degree of protection
  • Mechanical coding reliably prevents incorrect connections
  • Consistent EMC protection for reliable connection solutions in the industrial environment

Applications

  • For transmission of signals
Technical specifications
Pin number 13 pole
Type of locking SPEEDCON locking
Contact connection crimp connection
Product type socket
Coding signal, coding 1
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP68/IP69K
Thread size M40
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
