1622016 | Phoenix Contact

Plug, M23, 13 pole, crimp connection, screw locking, straight, 1622016

Order No.: 62P4212
EAN: 4055626011523
MPN:
1622016
SH-8EPS48A8LB1
Series: SH
1622016 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
60.4163 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
60.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
60.4163 €

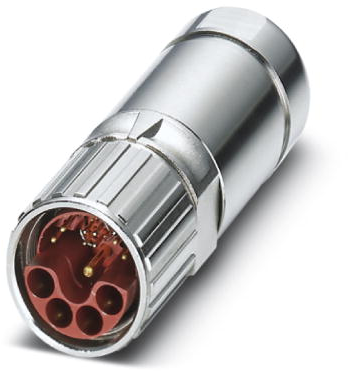

Sensor-actuator connector, 1622016, Phoenix Contact

Cable connector, SH, straight long, Screw locking, M23, No. of pole: 8+4+PE, type of contact: Pin, Crimp connection, cable diameter range: 15 mm - 18 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • Fast locking system

Applications

  • For transmission of signals
Technical specifications
Filter Property Value
Pin number 13 pole
Type of locking screw locking
Contact connection crimp connection
Product type plug
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67/IP68
Thread size M23
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
