1622006 | Phoenix Contact

Jack, M23, 13 pole, crimp connection, screw locking, straight, 1622006

Order No.: 62P4250
EAN: 4055626011806
MPN:
1622006
SH-8ESS48A8LB1
Series: SH
1622006 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
60.4163 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
60.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
60.4163 €

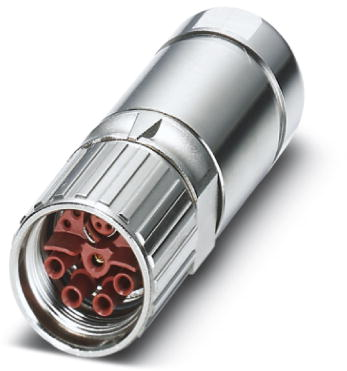

Sensor-actuator connector, 1622006, Phoenix Contact

Cable connector, SH, straight long, Screw locking, M23, No. of pole: 8+4+PE, type of contact: Socket, Crimp connection, cable diameter range: 15 mm - 18 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • Fast locking system

Applications

  • For transmission of signals
Technical specifications
Filter Property Value
Coding N
Type of locking screw locking
Thread size M23
Degree of protection (IP) IP67/IP68
Orientation straight
Pin number 13 pole
Assembly cable assembly
Contact connection crimp connection
Product type jack
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
