1621541 | Phoenix Contact

Jack, M23, 13 pole, crimp connection, SPEEDCON locking, straight, 1621541

Order No.: 62P4243
EAN: 4046356936897
MPN:
1621541
SH-8ESC58A9LB3S
Series: SH
1621541 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
77.3857 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
77.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
77.3857 €

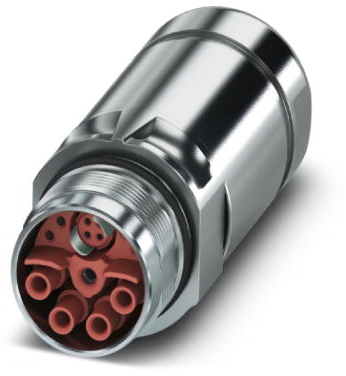

Coupler connector, 1621541, Phoenix Contact

Coupler connector, SH, straight long, for standard and SPEEDCON interlock, M23, No. of pole: 4+4+4+PE / 3+N+PE, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 9 mm - 12 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • CAT5 data interface for up to 100 Mbps

Applications

  • For transmission of signals
  • For data transimission
  • For power transimission
Technical specifications
Filter Property Value
Coding N
Type of locking SPEEDCON locking
Thread size M23
Degree of protection (IP) IP67/IP68
Orientation straight
Pin number 13 pole
Assembly cable assembly
Contact connection crimp connection
Product type jack
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
