1621528 | Phoenix Contact

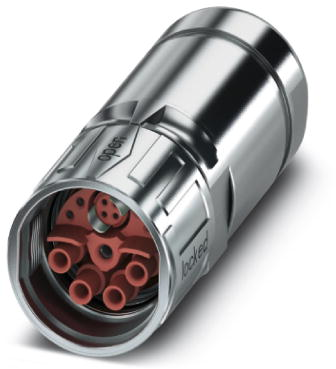

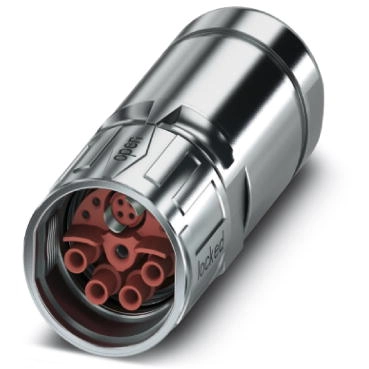

Jack, M23, 13 pole, crimp connection, SPEEDCON locking, straight, 1621528

Order No.: 62P4251
EAN: 4046356936514
MPN:
1621528
SH-8ESS48A8LB1S
Series: SH
1621528 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
67.4492 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
67.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
67.4492 €

Sensor-actuator connector, 1621528, Phoenix Contact

Cable connector, SH, straight long, SPEEDCON locking, M23, No. of pole: 8+4+PE, type of contact: Socket, Crimp connection, cable diameter range: 15 mm - 18 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • Fast locking system

Applications

  • For transmission of signals
Technical specifications
Filter Property Value
Assembly cable assembly
Pin number 13 pole
Degree of protection (IP) IP67/IP68/IP69K
Thread size M23
Contact connection crimp connection
Type of locking SPEEDCON locking
Coding N
Orientation straight
Product type jack
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
