1621522 | Phoenix Contact

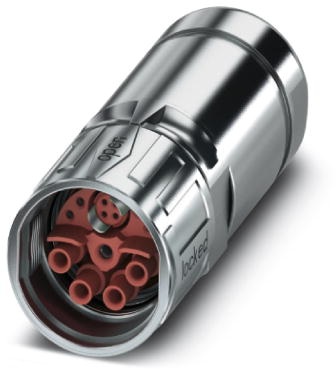

Socket, M23, 13 pole, crimp connection, SPEEDCON locking, straight, 1621522

Order No.: 62P4234
EAN: 4046356936354
MPN:
1621522
SH-8ESC58A8LB2S
Series: SH
1621522 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
67.4492 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
67.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
67.4492 €

Sensor-actuator connector, 1621522, Phoenix Contact

Cable connector, SH, straight long, SPEEDCON locking, M23, No. of pole: 4+4+4+PE / 3+N+PE, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 12 mm - 15 mm.

Features

  • Safe use in the field, thanks to a high degree of protection
  • Fast locking system
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • CAT5 data interface for up to 100 Mbps

Applications

  • For transmission of signals
  • For data transimission
  • For power transimission
Technical specifications
Pin number 13 pole
Type of locking SPEEDCON locking
Contact connection crimp connection
Product type socket
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67/IP68/IP69K
Thread size M23
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
