1621520 | Phoenix Contact

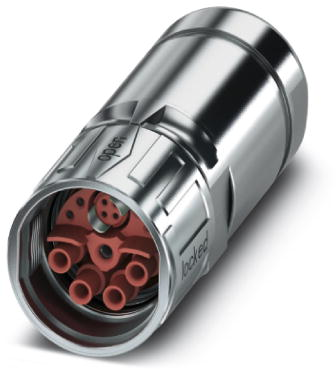

Socket, M23, 13 pole, crimp connection, SPEEDCON locking, straight, 1621520
Unit Price (€ / pc.)
67.4492 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Sensor-actuator connector, 1621520, Phoenix Contact
Cable connector, SH, straight long, SPEEDCON locking, M23, No. of pole: 4+4+4+PE / 3+N+PE, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 7.5 mm - 9 mm.
Features
- Safe use in the field, thanks to a high degree of protection
- Fast locking system
- Consistent EMC protection for reliable connection solutions in the industrial environment
- CAT5 data interface for up to 100 Mbps
Applications
- For transmission of signals
- For data transimission
- For power transimission
Technical specifications
| Type of locking | SPEEDCON locking | |
| Coding | N | |
| Degree of protection (IP) | IP67/IP68/IP69K | |
| Assembly | cable assembly | |
| Contact connection | crimp connection | |
| Pin number | 13 pole | |
| Version | socket | |
| Orientation | straight | |
| Thread size | M23 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
