1620302 | Phoenix Contact
Plug, M23, 12 pole, crimp connection, screw locking, angled, 1620302
Unit Price (€ / pc.)
73.423 € *
Available in 5 Days: 16 pcs. - if ordered today

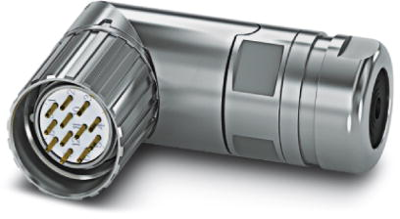

Sensor-actuator connector, 1620302, Phoenix Contact
Cable connector, CA, angled, Screw locking, M23, No. of pole: 12, Direction of rotation: Standard, type of contact: Pin, Crimp connection, cable diameter range: 3 mm - 14.5 mm.
Features
- Shielded
- Angled cable outlet for confined spaces
- Can be adapted to various applications, thanks to adjustable cable outlet direction
- Connector for flexible on-site assembly
- Consistent EMC protection for reliable transmission of signals
- Crimping connection: vibration- and temperature-resistant assembly
- Circular connector
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | M23 | |
| Orientation | angled | |
| Type of locking | screw locking | |
| Contact connection | crimp connection | |
| Degree of protection (IP) | IP67 | |
| Assembly | cable assembly | |
| Coding | N | |
| Product type | plug | |
| Pin number | 12 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
