1620273 | Phoenix Contact

Jack, M23, 16 pole, crimp connection, screw locking, angled, 1620273

Order No.: 62P0372
EAN: 4046356818131
MPN:
1620273
CA-16S1N8AT006
Series: CA
1620273 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
78.3734 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
78.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
78.3734 €

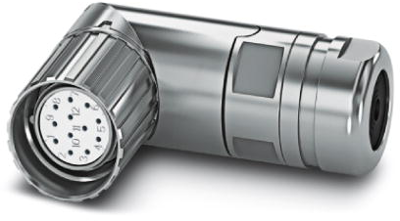

Sensor-actuator connector, 1620273, Phoenix Contact

Cable connector, CA, angled, Screw locking, M23, No. of pole: 16, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 4 mm - 6 mm.

Features

  • Shielded
  • Angled cable outlet for confined spaces
  • Can be adapted to various applications, thanks to adjustable cable outlet direction
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Crimping connection: vibration- and temperature-resistant assembly
  • Circular connector
Technical specifications
Filter Property Value
Coding N
Type of locking screw locking
Thread size M23
Degree of protection (IP) IP67
Orientation angled
Pin number 16 pole
Assembly cable assembly
Contact connection crimp connection
Product type jack
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
