1620258 | Phoenix Contact

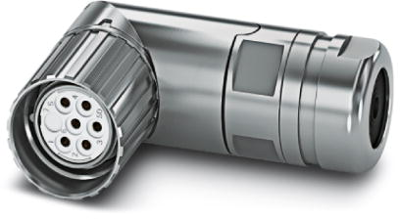

Jack, M23, 7 pole, solder connection, screw locking, angled, 1620258

Order No.: 61P9972
EAN: 4046356818254
MPN:
1620258
CA-07S1N12T007
Series: CA
1620258 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
84.0497 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
84.05 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
84.0497 €

Sensor-actuator connector, 1620258, Phoenix Contact

Cable connector, CA, angled, Screw locking, M23, No. of pole: 7, Direction of rotation: Standard, type of contact: Socket, Solder connection, cable diameter range: 6 mm - 10 mm.

Features

  • Shielded
  • Angled cable outlet for confined spaces
  • Can be adapted to various applications, thanks to adjustable cable outlet direction
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Solder connection: proven connection technology for various litz wires
  • Circular connector
Technical specifications
Coding N
Type of locking screw locking
Thread size M23
Degree of protection (IP) IP67
contact surface gold-plated
Orientation angled
Pin number 7 pole
Assembly cable assembly
Contact connection solder connection
Product type jack
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
